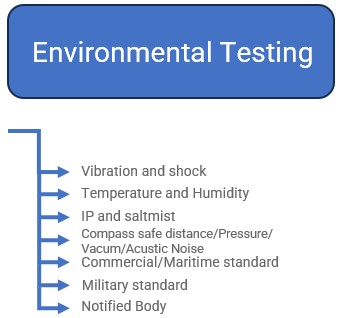

ENV – miljøtesting



Testet for tøffe forhold

Elektrisk og elektronisk utstyr må kunne tåle den mekaniske belastningen det vil bli utsatt for under tiltenkt bruk. Dette kan for eksempel være ekstreme temperaturer eller sterke vibrasjoner. Applica Test & Certification har utstyr og kompetanse til å teste produkter i henhold til gjeldende krav/standarder for å bekrefte at de tåler den spesifiserte klima- og mekaniske belastningen.

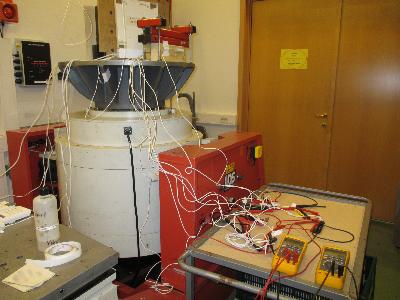

Vibrasjon og støt (sjokk)

Applica Test & Sertifisering har to store vibratorer; én med en kapasitet på opptil 1 tonn. Kapasiteten er enda høyere hvis produktet får plass på et spesiallaget feste.
Vi utfører akkreditert vibrasjons- og støtprøving (sjokkprøving) i henhold til følgende standarder:



  • DNV-CG-0339 Environmental test specification for electrical, electronic and programmable equipment and systems
  • IACS E10 International Association of Classification Societies
  • IEC 60945 Maritime navigation and radiocommunication equipment and systems
  • MIL-STD 810 H Department of Defense Test Method Standard – Environmental Engineering Considerations and Laboratory Tests
  • IEC 60068-2-75 Test Eh: Hammer tests
  • IEC 60068-2-31 Test Ec: Rough handling shocks, primarily for equipment-type specimens
  • IEC 60068-2-6 Test Fc: Vibration (sinusoidal)
  • IEC 60068-2-4 Test Fh: Vibration, broadband random and guidance
  • IEC 60068-2-27 Test Ea and guidance: Shock
  • API17F (ikke akkreditert) Standard for Subsea Production and Processing Control Systems

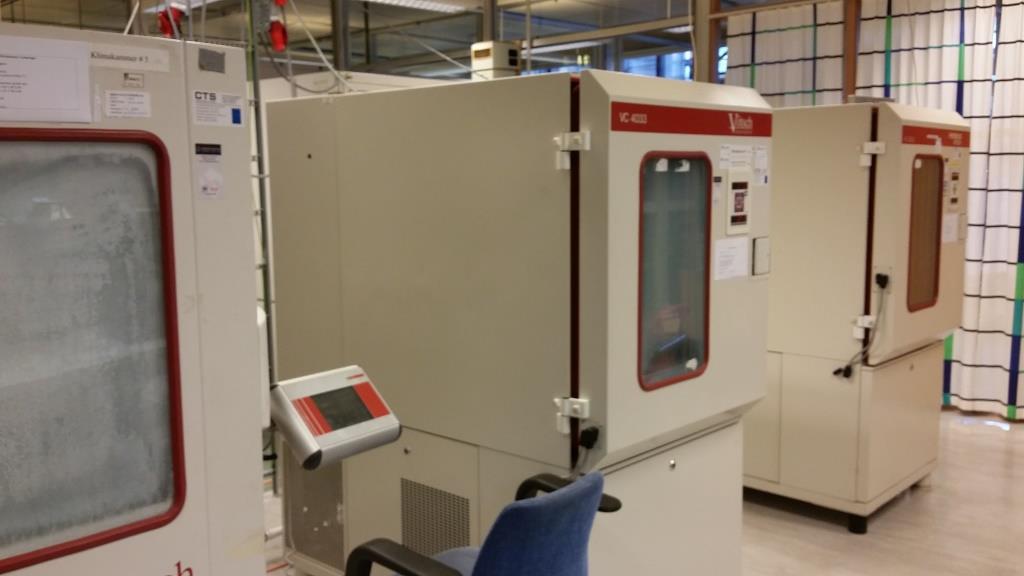

Temperatur og fuktighet (klimatest)

Applica Test & Sertifisering har 4 mindre kamre, 1 dedikert skap til salttåke tørking, 1 temperatursjokk /syklisk (± 15C°/min) og 2 «walk in» kamre.

Vi tilbyr akkreditert klimatesting i henhold til relevante deler av:



  • DNV-CG-0339 Environmental test specification for electrical, electronic and programmable equipment and systems
  • IACS E10 International Association of Classification Societies
  • EN 60945 Maritim navigasjon og radiokommunikasjonsutstyr og systemer
  • MIL-STD 810H Betraktninger om miljøteknikk og laboratorietester
  • EN 60068-2-x Damp Heat / Dry Heat / Cold
  • EN 54-2 og EN 54-4 Standard for Fire detection and fire alarm systems
  • API17F (ikke akkreditert) Standard for Subsea Production and Processing Control Systems

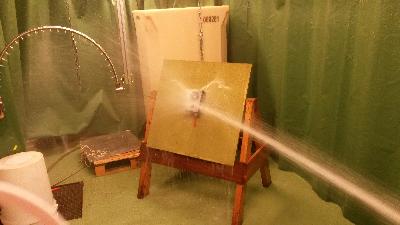

IP og salttåke (saltmist)

IP- og salttåketesting utføres i henhold til:



  • EN 60529 Degrees of protection provided by enclosures (IP Code)
  • IEC 60068-2-11 Test Ka: Salt Mist
  • MIL-STD-810 Department of Defense Test Method Standard – Environmental Engineering Considerations and Laboratory Tests
MIL-STD-810 test

Vi tilbyr testing etter følgende metoder:

    • Method 500.6 – Low pressure (Altitude)
    • Method 501.7 – High Temperature (Storage / Operation)
    • Method 502.7 – Low temperature (Storage / Operation)
    • Method 503.7 – Temperature Shock
    • Method 504.3 – Contamination by Fluids (ikke akkreditert)
    • Method 505.7 – Solar Radiation (ikke akkreditert)
    • Method 506.6 – Rain
    • Method 507.6 – Humidity
    • Method 509.7 – Salt fog
    • Method 512.6 – Immersion
    • Method 514.8 – Vibration (sinus, random, random on random, sinus on random)
    • Method 516.8 – Shock (half sine, terminal peak sawtooth, SRS)
    • Method 528.1 – Vibration of shipboard equipment
